China-Made High-Efficiency PD Screw Belt Conveyor Cleaner – Flexible, Easy-to-Operate Alloy Metal Construction
To Our Customers:
While we prioritize functional design over aesthetic presentation, we specialize in manufacturing a comprehensive range of wastewater treatment equipment. Should you have any inquiries, please feel free to contact us—we are always ready to assist.
Applications
The PD Screw Belt Conveyor Cleaner is designed for continuous or intermittent cleaning and transportation of a wide variety of materials. It efficiently handles bulk goods, cartons, packaged items, and other objects of varying weights and sizes, making it suitable for diverse industrial settings.
Technical Parameters
| Model | PD-500 | PD-650 | PD-800 | PD-1000 |
|---|---|---|---|---|
| Band Width (mm) | 500 | 650 | 800 | 1000 |
| Delivery (m³/h) | Customizable per installation and requirements | |||
| Installation Angle (°) | 0.0–20.0 (adjustable) | |||
| Belt Speed (m/s) | 0.6–1.0 | |||
| Motor Power (kW) | 0.75–22.0 (customized based on length and load) | |||
| Drum Diameter (mm) | 220, 240, 315, 400, 500 (size varies with conveyor length) | |||
| Installation Dimensions (mm) | B1 = Bandwidth + 250; L, H1 customizable per user requirements |
Key Features
Reliable Performance: High conveying capacity and long-distance, multi-point, continuous operation.
Compact Motor System: Oil-cooled electric drum with IP55 protection rating, saving space and simplifying maintenance.
Spiral Tensioning Device: Ensures safe, stable, and efficient conveyor belt operation.
Durable Belt Material: Butyl rubber belt with vulcanized joints, offering easy cleaning, corrosion resistance, and extended service life.
Slag Retaining Design: Side baffles prevent leakage and spillage, maintaining a clean working environment.
Flexible Installation: Operates horizontally or at an incline; ideal for grid slag removal with zero clogging and minimal maintenance.
Structure and Working Principle

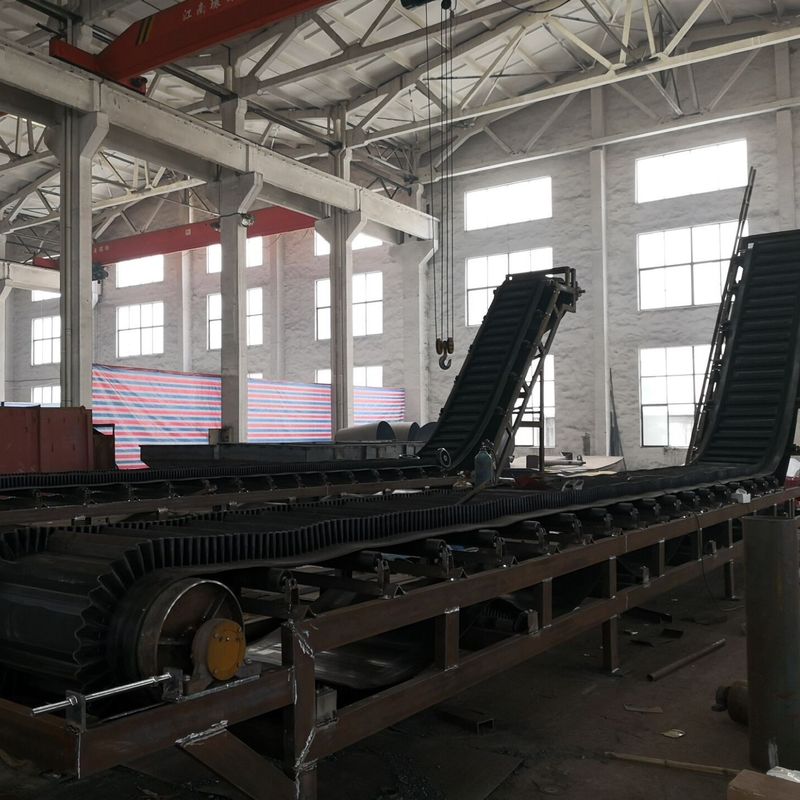

The equipment adopts a continuous trough belt type. The material falls on the conveyor belt from the bar or the discharge port of the dewatering machine. Driven by the electric drum, the material moves from one end to the other, and the end is connected with the trash can to deal with.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
